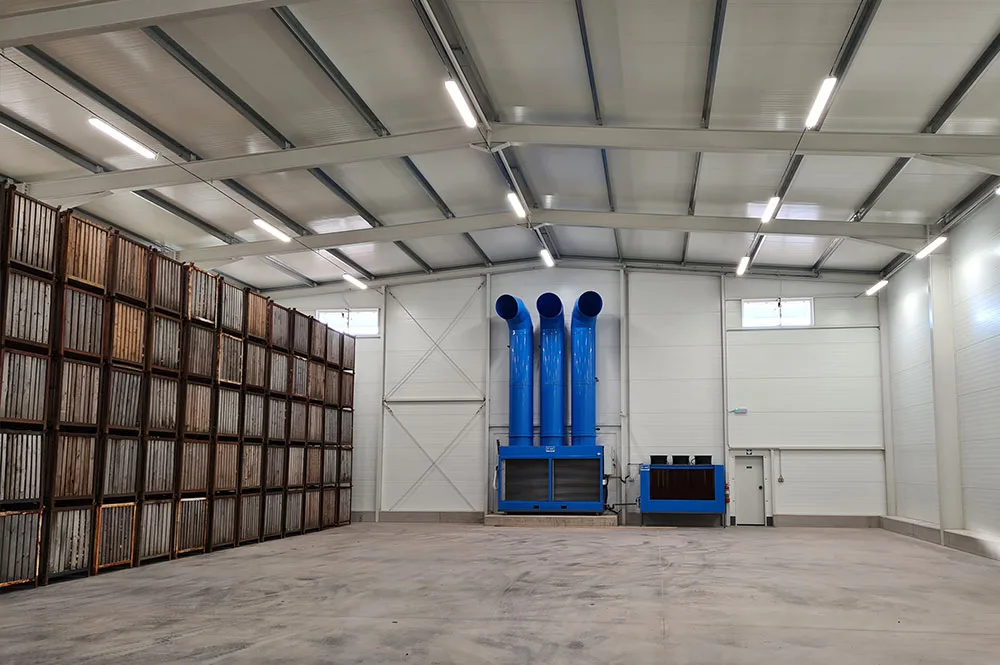

Agroel provides complete solutions for box storage. Here you will find information about the main components:

• Fan – used for air distribution in the storage area.
• Intake control damper – used for supplying fresh outdoor air into the warehouse and mixing it with indoor air to achieve the desired temperature. The damper is controlled by an electric linear or radial servo drive with a position sensor.
• Exhaust damper – used for expelling warm air from the storage area. The damper is usually located near the ceiling of the warehouse in one of the perimeter walls, often in the same wall as the intake damper.
• Evaporator (cooler) – used for cooling recirculated indoor air. The evaporator consists of tubes for refrigerant distribution, fins ensuring heat transfer, and an injection valve that automatically regulates the amount of refrigerant supplied according to the evaporation temperature. A temperature sensor connected to the control system is located in the evaporator. The evaporator is connected to the condensing unit by copper pipes.
• Air humidification panels – used for air humidification using an evaporative principle, without the formation of water droplets. Evaporation takes place on a special porous material that is continuously saturated with water from the recycling unit. Air passing through the humidification panels absorbs only as much water as it can hold. Thus, free water in the form of droplets, which would adhere to the stored material and cause storage diseases, cannot enter the warehouse space. By evaporating water, the temperature of the panels also decreases, which results in a decrease in the temperature of the air passing through them. This cooled air can then be used to cool the stored product while maintaining its high relative humidity. Humidification can be used during outdoor air ventilation and during active cooling, if installed.
• Rack and pinion bars for damper control – used for power transmission to control intake and exhaust dampers. If linear servo drives are installed, rack and pinion bars are not used.
• Radial or linear servo drive – used to control dampers.
• Retaining walls – the walls of some warehouses are not designed to withstand the high pressure caused by the stored product. In such a case, the warehouse must be supplemented with retaining walls. These are usually made of special profiled and galvanically treated sheet metal or can be wooden.
• Pressure chamber – used for air distribution to individual above-floor or under-floor channels. The design of the pressure chamber is subject to calculation.
• Ventilation channels – can be above-floor or under-floor. For reconstructed warehouses with an existing concrete floor, above-floor channels are generally more advantageous, as it is not necessary to disturb the existing floor, which can be financially demanding. In other cases, we recommend under-floor channels.

Professional calculation of the climate control system is a fundamental prerequisite for future successful storage. Our experts will therefore be happy to advise you on the selection of the optimal solution for your warehouse and prepare the necessary documents for construction documentation. We provide this service to all our customers free of charge!

Calculating and designing a warehouse is not simple. We have already dealt with hundreds of box warehouse alternatives – entrust us with the solution for your warehouse as well.

The issues to be addressed include especially these elements:

• Required air volume and selection of fans according to the type and quantity of stored product
• Calculation of the area of intake and exhaust dampers
• Selection of damper control by linear or radial servo drives
• Arrangement and dimensions of the mixing chamber
• Arrangement and dimensions of the pressure chamber
• Selection of the type of air ventilation channels
• Calculation of the area of individual channels and their placement in the warehouse
• Calculation of the size of the slots for air passage from the channels to the stored material
• Design of the control system with regard to the type of warehouse, stored product, and storage purpose

Agroel provides complete solutions for box storage. Here you will find information about the main components:

• Fan – used for air distribution in the storage area.
• Intake control damper – used for supplying fresh outdoor air into the warehouse and mixing it with indoor air to achieve the desired temperature. The damper is controlled by an electric linear or radial servo drive with a position sensor.
• Exhaust damper – used for expelling warm air from the storage area. The damper is usually located near the ceiling of the warehouse in one of the perimeter walls, often in the same wall as the intake damper.
• Evaporator (cooler) – used for cooling recirculated indoor air. The evaporator consists of tubes for refrigerant distribution, fins ensuring heat transfer, and an injection valve that automatically regulates the amount of refrigerant supplied according to the evaporation temperature. A temperature sensor connected to the control system is located in the evaporator. The evaporator is connected to the condensing unit by copper pipes.
• Air humidification panels – used for air humidification using an evaporative principle, without the formation of water droplets. Evaporation takes place on a special porous material that is continuously saturated with water from the recycling unit. Air passing through the humidification panels absorbs only as much water as it can hold. Thus, free water in the form of droplets, which would adhere to the stored material and cause storage diseases, cannot enter the warehouse space. By evaporating water, the temperature of the panels also decreases, which results in a decrease in the temperature of the air passing through them. This cooled air can then be used to cool the stored product while maintaining its high relative humidity. Humidification can be used during outdoor air ventilation and during active cooling, if installed.
• Rack and pinion bars for damper control – used for power transmission to control intake and exhaust dampers. If linear servo drives are installed, rack and pinion bars are not used.
• Radial or linear servo drive – used to control dampers.
• Retaining walls – the walls of some warehouses are not designed to withstand the high pressure caused by the stored product. In such a case, the warehouse must be supplemented with retaining walls. These are usually made of special profiled and galvanically treated sheet metal or can be wooden.
• Pressure chamber – used for air distribution to individual above-floor or under-floor channels. The design of the pressure chamber is subject to calculation.
• Ventilation channels – can be above-floor or under-floor. For reconstructed warehouses with an existing concrete floor, above-floor channels are generally more advantageous, as it is not necessary to disturb the existing floor, which can be financially demanding. In other cases, we recommend under-floor channels.

Professional calculation of the climate control system is a fundamental prerequisite for future successful storage. Our experts will therefore be happy to advise you on the selection of the optimal solution for your warehouse and prepare the necessary documents for construction documentation. We provide this service to all our customers free of charge!

Calculating and designing a warehouse is not simple. We have already dealt with hundreds of box warehouse alternatives – entrust us with the solution for your warehouse as well.

The issues to be addressed include especially these elements:

• Required air volume and selection of fans accordingly to the type and quantity of stored product
• Calculation of the area of intake and exhaust dampers
• Selection of damper control by linear or radial servo drives
• Arrangement and dimensions of the mixing chamber
• Arrangement and dimensions of the pressure chamber
• Selection of the type of air ventilation channels
• Calculation of the area of individual channels and their placement in the warehouse
• Calculation of the size of the slots for air passage from the channels to the stored material
• Design of the control system with regard to the type of warehouse, stored product, and storage purpose

Every storekeeper knows that the stored product is living matter that generates its own heat due to respiration. Heat must be removed from the store and the stored product cooled to slow down biological processes and maintain its quality long-term.

The cooling process itself, although necessary, results in the greatest weight and quality losses. Whether cooling takes place using cooling units and evaporators or by ventilation using outside air, the stored material always dries out. The air used for cooling almost never has 100% relative humidity, and can therefore absorb more water in the form of water vapor during cooling. Water evaporates through the pores from the surface of the stored material during respiration, and by air exchange during cooling, it is removed from the storage area, causing weight loss. Water is "lost" either by condensation on coolers (so-called evaporators), or moist air is removed from the store through exhaust flaps during ventilation with outside air. Our aim is therefore to minimize the amount of "lost" water during cooling and thereby save significant money for storekeepers.

The use of humidification panels has a significant cooling effect. By evaporating water, the temperature of the panels decreases, which results in a decrease in the temperature of the air passing through them. This simple physical principle brings further significant savings to storers. This cooled air can then be used to cool the stored product while maintaining its high relative humidity!

Agroel began using humidification panels in many of its climate control systems. They are best applied in ventilated warehouses or those with combined cooling. Warm outdoor air, which under normal conditions would not be used for cooling, can be cooled by several degrees (depending on its relative humidity) after passing through the humidification panels and thus used for cooling! Cooling in this way is almost free compared to cooling using refrigeration units, which require high electrical input. The best combination is climate control equipment that has ventilation, cooling, and humidification units and can automatically optimize operation according to current outdoor and indoor climatic conditions.

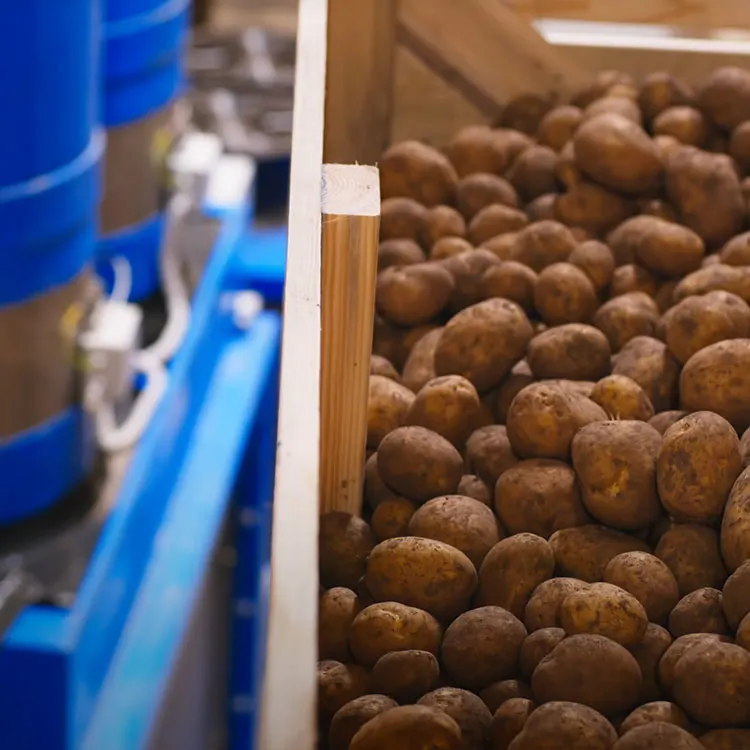

Generally, products for which high air humidity has a positive effect on the quality of the stored product, especially on limiting softening and related weight and quality loss. This applies especially to potatoes, root vegetables, and apples. These individual products have their specific storage stages that must be observed during storage. Agroel automatic climate control systems already have built-in modes for individual storage phases and thus contribute to the successful storage of these products.

Agroel has developed an air humidification system that works without creating water droplets! The basis of this new principle of so-called adsorption humidification is the requirement to supply only as much water to the warehouse as can evaporate into the air.

Evaporation takes place on a special, porous material developed for this purpose, which is constantly saturated with water. Air passing through these humidification panels absorbs only as much water as it can hold. Thus, free water in the form of droplets, which would adhere to the stored material and cause storage diseases, cannot enter the warehouse space. Humidification panels in Agroel climate control systems operate with an efficiency of up to 95%!

The operation of such devices is very complex in terms of correct switching of relevant elements according to current conditions. Manual control is out of the question, as outdoor climatic conditions and warehouse conditions constantly change and the operation of the device must be continuously corrected. Therefore, Agroel standardly supplies climate control units equipped with automatic control with optimization of the operation of ventilation, cooling, and humidification elements.

Active cooling must be used wherever maintaining a constant temperature in the stored material cannot be ensured solely by ventilating with cool outdoor air. In such a case, the cooling system functions as an addition to the ventilation system and provides an alternative source of cold air in case it is not available outdoors.

It must be realized that cooled stored material has a large thermal capacity and therefore maintains its temperature for a certain period even with fluctuations in outdoor temperatures. It cannot therefore be said that every warehouse must be equipped with a cooling system, because outdoor temperatures may be temporarily unsuitable for ventilation. When deciding on the installation of a cooling system, we are guided mainly by these points:

• Required storage temperature
• Storage economics: For some products, cooling is economically unsustainable, for others it is a necessity in terms of maintaining quality.
• Storage season: Throughout the year, there are different outdoor climatic conditions, and thus different possibilities for ventilation with outdoor air.
• Sensitivity of stored material to temperature fluctuations
• Frequency of loading and unloading

An important factor in storage is also the issue of air exchange. Stored material is a living organism that excretes volatile organic substances (especially ethylene) during metabolism, which reduce the quality of the stored material. Air exchange can be ensured by a combination of a cooling and ventilation system – this has been a long-standing standard of Agroel.

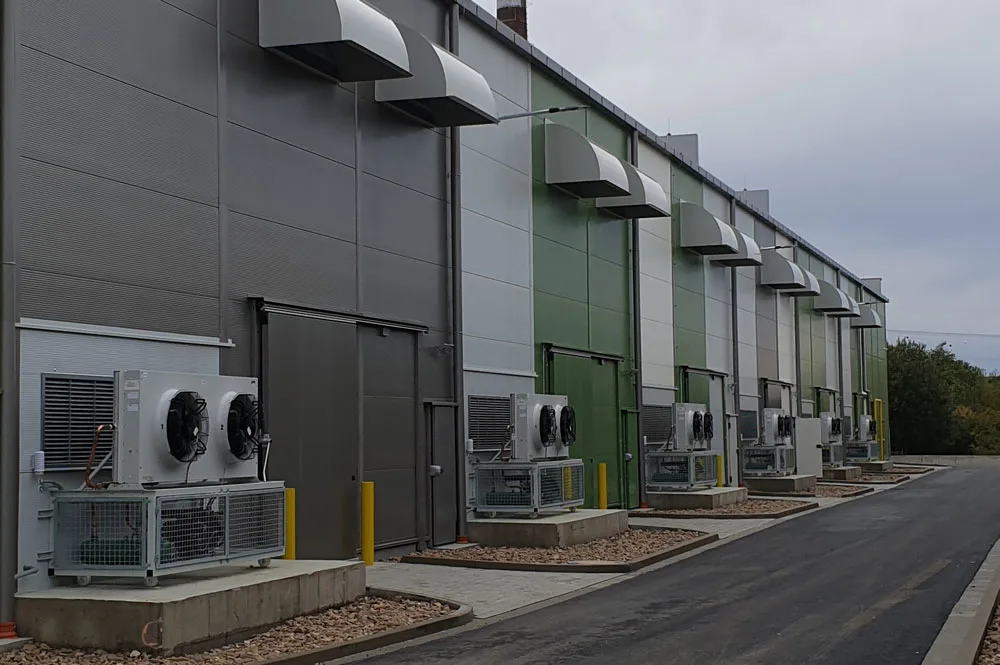

Agroel cooling systems are designed with regard to the conditions in which they will be operated. Active cooling can be installed for both pallet warehouses (ISK models with CP designation) and bulk storage facilities.

Main characteristics of our cooling systems:

• Installed compressors are hermetic (flangeless) from renowned manufacturers Maneurop or Copeland.
• "Scroll" compressor technology ensures long-term trouble-free operation in harsh conditions.
• Robust evaporators with sufficient area guarantee long life and good operational efficiency.
• Fast service throughout Europe in cooperation with partner companies.

Professional calculation of the climate control system is a fundamental prerequisite for future successful storage. Our experts will therefore be happy to advise you on the selection of the optimal solution for your warehouse and prepare the necessary documents for construction documentation. We provide this service to all our customers free of charge!

Calculating and designing a warehouse is not simple. We have already dealt with hundreds of warehouse alternatives – entrust us with the solution for your warehouse as well.

The issues to be addressed include especially these elements:

• Required air volume and selection of fans according to the type and quantity of stored product.
• Calculation of the area of intake and exhaust dampers.
• Selection of damper control by linear or radial servo drives.
• Arrangement and dimensions of the mixing chamber.
• Arrangement and dimensions of the pressure chamber.
• Selection of the type of air ventilation channels.
• Calculation of the area of individual channels and their placement in the warehouse.
• Calculation of the size of the slots for air passage from the channels to the stored material.
• Design of the control system with regard to the type of warehouse, stored product, and storage purpose.
